ADRF5020BCCZN-R7

Mfr.Part # : ADRF5020BCCZN-R7

Manufacturer : Analog Devices, Inc.

Description : IC RF SWITCH SPDT 30GHZ 20LGA

Stock : 35000

Product Category : RF Switches

Circuit : SPDT

Frequency Range : 100MHz ~ 30GHz

IIP3 : 52dBm

Impedance : 50Ohm

Insertion Loss : 2dB

Isolation : 65dB

Operating Temperature : -40°C ~ 85°C

P1dB : 28dBm

Package / Case : 20-WFLGA Exposed Pad

Product Status : Active

RF Type : VSAT

Supplier Device Package : 20-LGA (3x3)

Test Frequency : 20GHz

Topology : Absorptive

Voltage - Supply : 5.5V

Contact Now

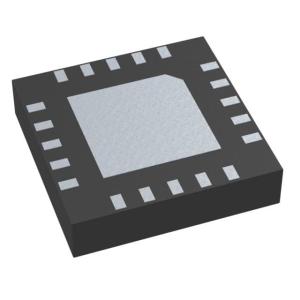

ADRF5020BCCZN-R7 Images
