HMC547ALP3E

Mfr.Part # : HMC547ALP3E

Manufacturer : Analog Devices, Inc.

Description : IC RF SWITCH SPDT 20GHZ 16QFN

Stock : 1354

Product Category : RF Switches

Circuit : SPDT

Frequency Range : 0Hz ~ 20GHz

IIP3 : 45dBm (min)

Impedance : 50Ohm

Insertion Loss : 2dB

Isolation : 38dB

Operating Temperature : -40°C ~ 85°C

P1dB : 23dBm

Package / Case : 16-VFQFN Exposed Pad

Product Status : Active

RF Type : VSAT

Supplier Device Package : 16-QFN (3x3)

Test Frequency : 20GHz

Topology : Absorptive

Contact Now

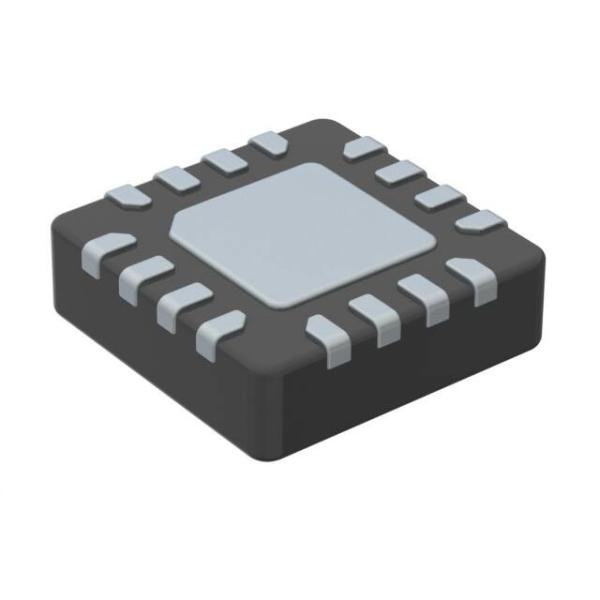

HMC547ALP3E Images
