DPX202690DT-4149A2

Mfr.Part # : DPX202690DT-4149A2

Manufacturer : TDK Corporation

Description : RF DIPLEXER 832MHZ/2.2GHZ 0805

Stock : 71

Product Category : RF Multiplexers

Frequency Bands (Low / High) : 704MHz ~ 960MHz / 1.71GHz ~ 2.69GHz

High Band Attenuation (min / max dB) : 17.00dB / 20.00dB

Low Band Attenuation (min / max dB) : 13.00dB / 17.00dB

Mounting Type : Surface Mount

Package / Case : 0805 (2012 Metric), 6 PC Pad

Product Status : Active

Return Loss (Low Band / High Band) : 12.0dB / 14.0dB

Type : Diplexer

Contact Now

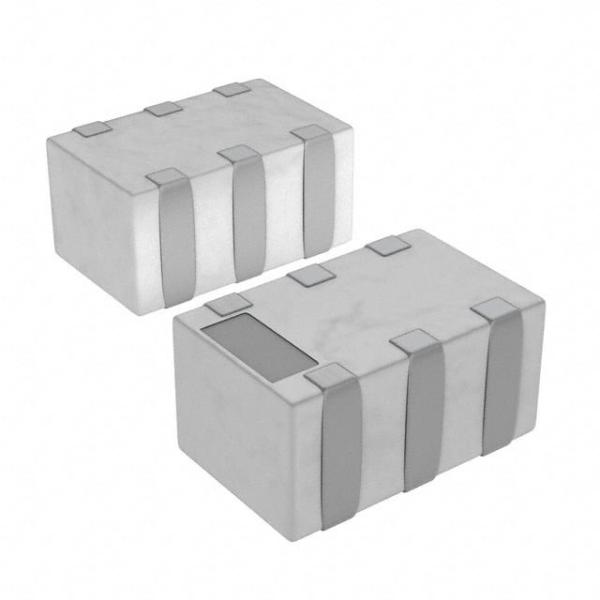

DPX202690DT-4149A2 Images
