DPX165950DT-8145A1

Mfr.Part # : DPX165950DT-8145A1

Manufacturer : TDK Corporation

Description : MULTILAYER DIPLEXER FOR 2400 - 2

Stock : 8000

Product Category : RF Multiplexers

Frequency Bands (Low / High) : 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz

High Band Attenuation (min / max dB) : 15.00dB / 19.00dB

Low Band Attenuation (min / max dB) : 30.00dB / 37.00dB

Mounting Type : Surface Mount

Package / Case : 0603 (1608 Metric), 6 PC Pad

Product Status : Active

Return Loss (Low Band / High Band) : 9.54dB / 9.54dB

Type : Diplexer

Contact Now

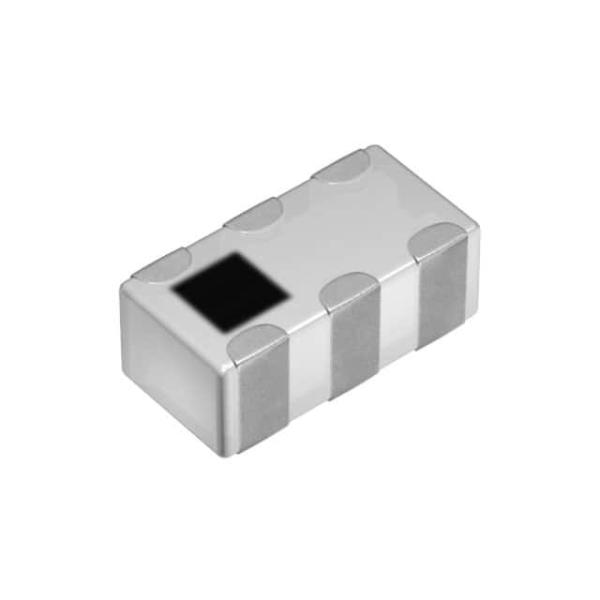

DPX165950DT-8145A1 Images
