ACM7060-301-2PL-TL01

Mfr.Part # : ACM7060-301-2PL-TL01

Manufacturer : TDK Corporation

Description : CMC 5A 2LN 300 OHM SMD

Stock : 54102

Product Category : Common Mode Chokes

Current Rating (Max) : 5A

DC Resistance (DCR) (Max) : 10mOhm

Filter Type : Power Line

Impedance @ Frequency : 300 Ohms @ 100 MHz

Mounting Type : Surface Mount

Number of Lines : 2

Operating Temperature : -40°C ~ 85°C

Package / Case : Horizontal, 4 PC Pad

Product Status : Active

Voltage Rating - DC : 80V

Contact Now

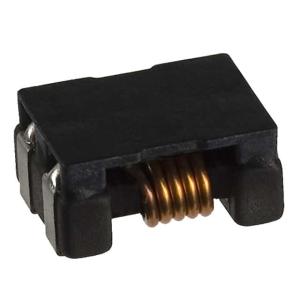

ACM7060-301-2PL-TL01 Images
