S14100038

Mfr.Part # : S14100038

Manufacturer : Würth Elektronik

Description : CMC 560UH 20A 2LN TH

Stock : 4641

Product Category : Common Mode Chokes

Current Rating (Max) : 20A

DC Resistance (DCR) (Max) : 2.8mOhm

Inductance @ Frequency : 560 µH @ 10 kHz

Mounting Type : Through Hole

Number of Lines : 2

Operating Temperature : -40°C ~ 125°C

Package / Case : Vertical, 4 PC Pin

Product Status : Active

Voltage Rating - AC : 250V

Contact Now

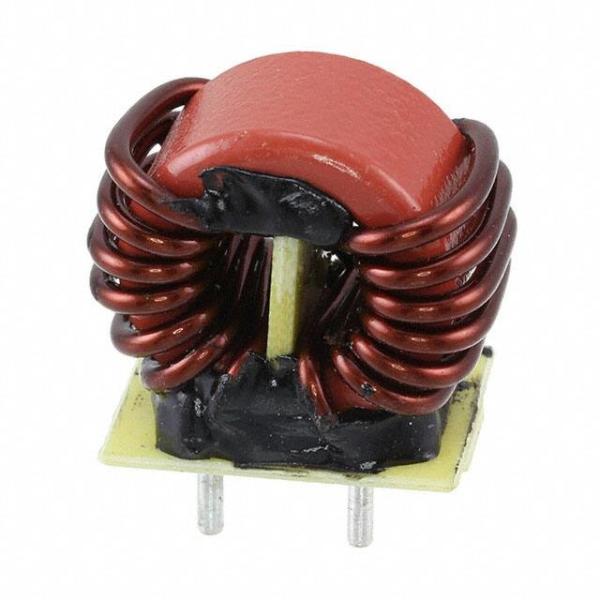

S14100038 Images
