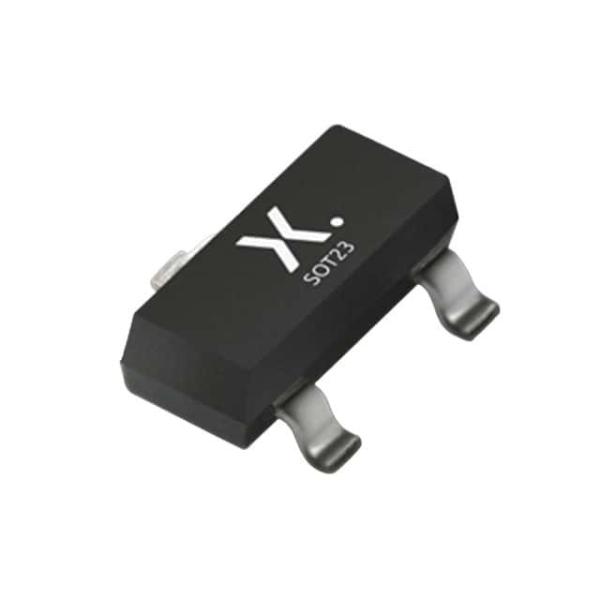

NX2301P,215

Mfr.Part # : NX2301P,215

Manufacturer : Nexperia

Description : MOSFET P-CH 20V 2A TO236AB

Stock : 809

Product Category : Transistors - FETs, MOSFETs - Single

Current - Continuous Drain (Id) @ 25°C : 2A (Ta)

Drain to Source Voltage (Vdss) : 20 V

Drive Voltage (Max Rds On, Min Rds On) : 2.5V, 4.5V

FET Type : P-Channel

Gate Charge (Qg) (Max) @ Vgs : 6 nC @ 4.5 V

Input Capacitance (Ciss) (Max) @ Vds : 380 pF @ 6 V

Mounting Type : Surface Mount

Operating Temperature : 150°C (TJ)

Package / Case : TO-236-3, SC-59, SOT-23-3

Power Dissipation (Max) : 400mW (Ta), 2.8W (Tc)

Product Status : Active

Rds On (Max) @ Id, Vgs : 120mOhm @ 1A, 4.5V

Supplier Device Package : TO-236AB

Technology : MOSFET (Metal Oxide)

Vgs (Max) : ±8V

Vgs(th) (Max) @ Id : 1.1V @ 250µA
