PDTA143XQCZ

Mfr.Part # : PDTA143XQCZ

Manufacturer : Nexperia

Description : PDTA143XQC/SOT8009/DFN1412D-3

Stock : 5000

Product Category : Transistors - Bipolar (BJT) - Single, Pre-Biased

Current - Collector (Ic) (Max) : 100 mA

Current - Collector Cutoff (Max) : 100nA

DC Current Gain (hFE) (Min) @ Ic, Vce : 50 @ 10mA, 5V

Frequency - Transition : 180 MHz

Mounting Type : Surface Mount, Wettable Flank

Package / Case : 3-XDFN Exposed Pad

Power - Max : 360 mW

Product Status : Active

Resistor - Base (R1) : 4.7 kOhms

Resistor - Emitter Base (R2) : 10 kOhms

Supplier Device Package : DFN1412D-3

Transistor Type : PNP - Pre-Biased

Vce Saturation (Max) @ Ib, Ic : 100mV @ 500µA, 10mA

Voltage - Collector Emitter Breakdown (Max) : 50 V

Contact Now

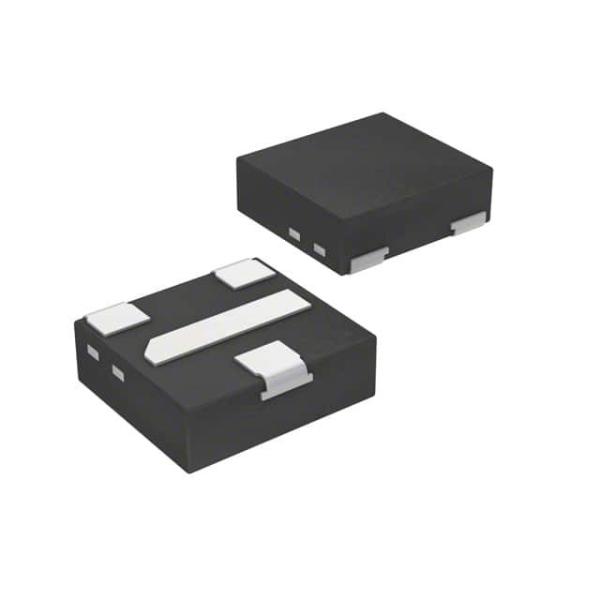

PDTA143XQCZ Images
