PMEG10020AELRX

Mfr.Part # : PMEG10020AELRX

Manufacturer : Nexperia

Description : DIODE SCHOTTKY 100V 2A SOD123W

Stock : 840

Product Category : Diodes - Rectifiers - Single

Capacitance @ Vr, F : 135pF @ 1V, 1MHz

Current - Average Rectified (Io) : 2A

Current - Reverse Leakage @ Vr : 300 nA @ 100 V

Diode Type : Schottky

Mounting Type : Surface Mount

Operating Temperature - Junction : 175°C (Max)

Package / Case : SOD-123W

Product Status : Active

Reverse Recovery Time (trr) : 5 ns

Speed : Fast Recovery =< 500ns, > 200mA (Io)

Supplier Device Package : SOD-123W

Voltage - DC Reverse (Vr) (Max) : 100 V

Voltage - Forward (Vf) (Max) @ If : 770 mV @ 2 A

Contact Now

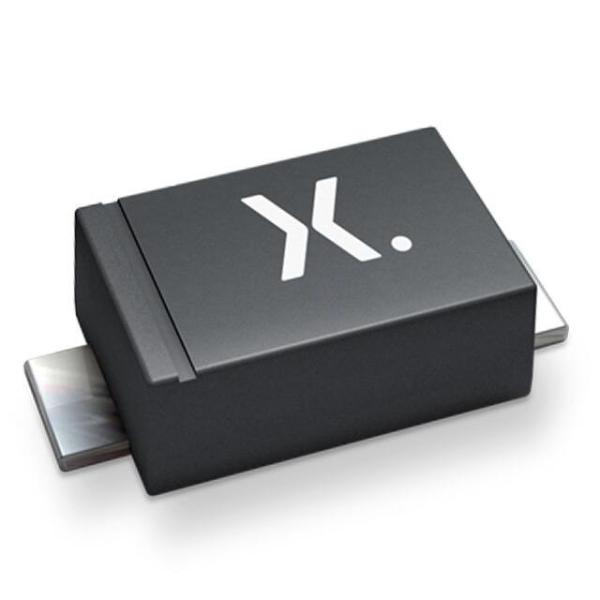

PMEG10020AELRX Images
